ECG thermal paper (also called EKG paper) is use in electrocardiogram (ECG/EKG) machines to record cardiac electrical activity.

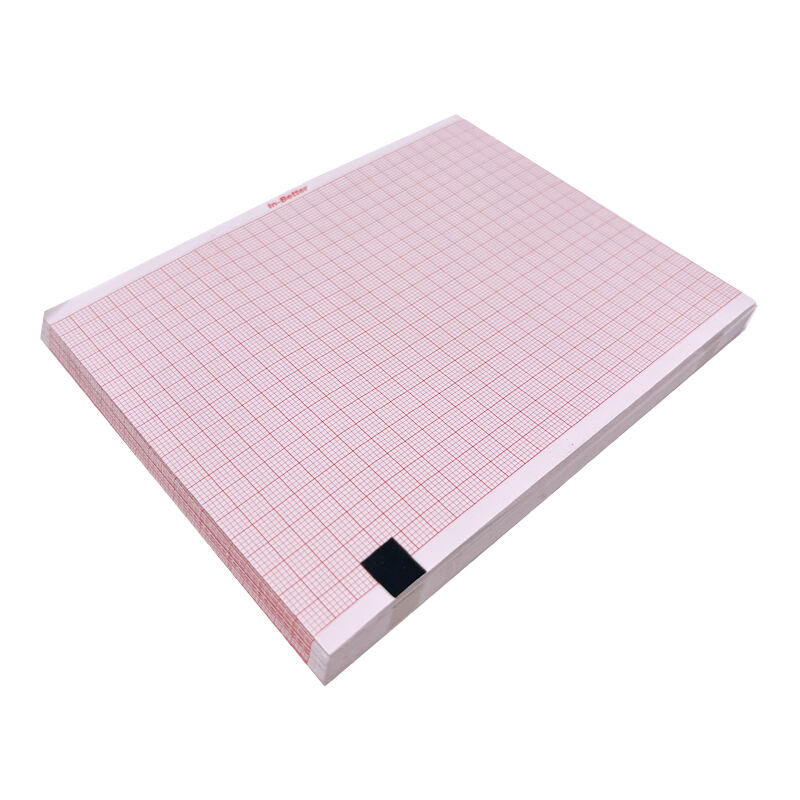

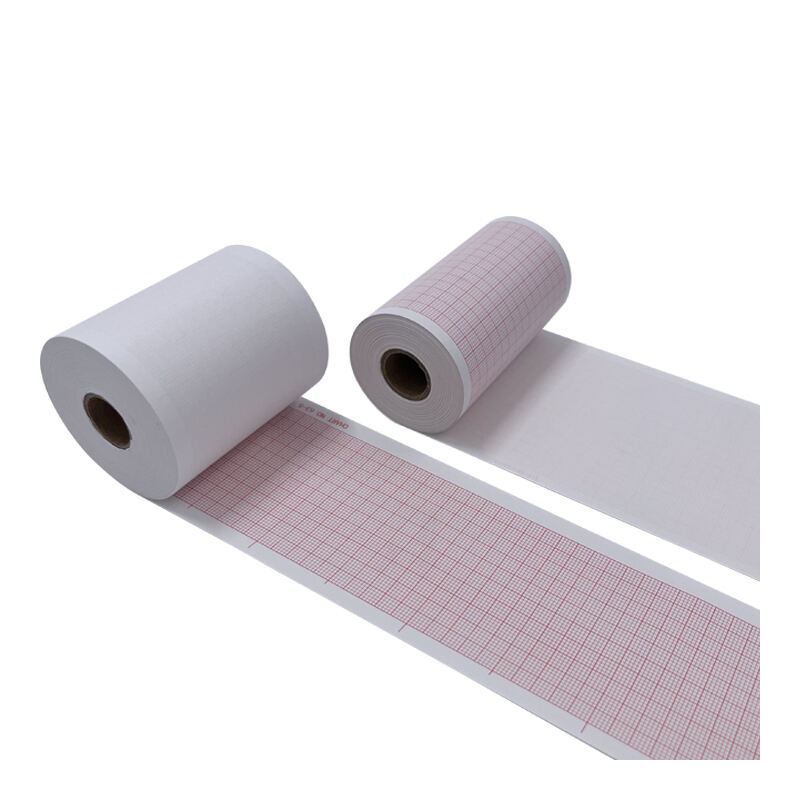

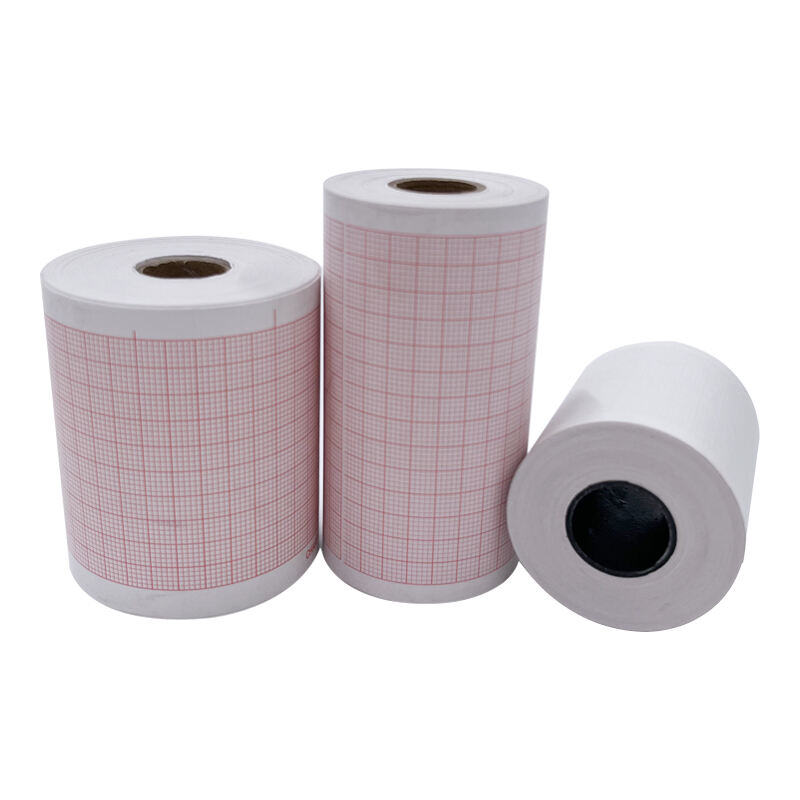

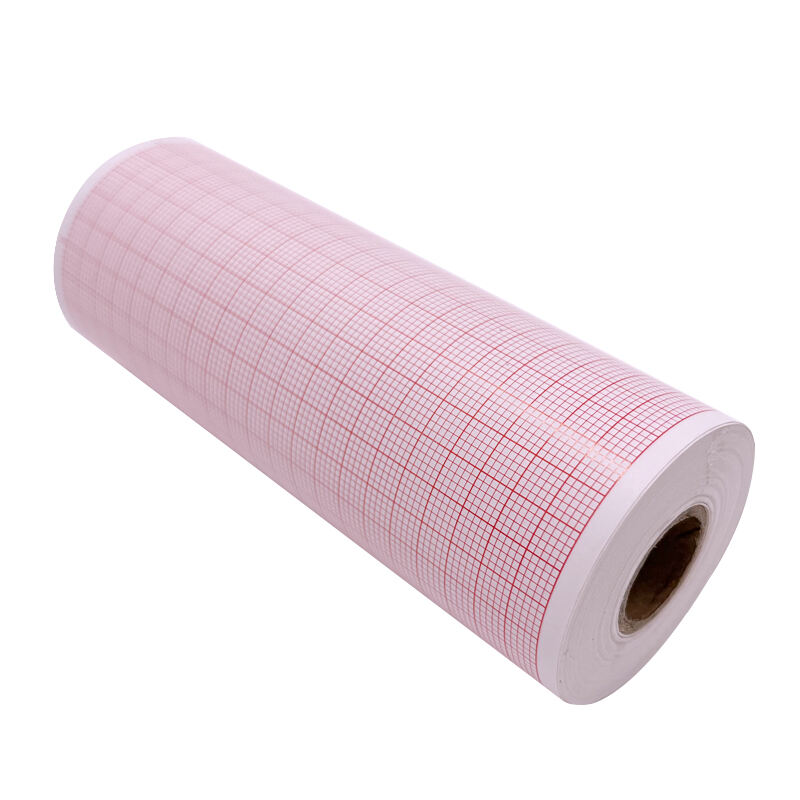

We offer ECG paper in two convenient formats, roller type and fan-fold, both options ensure reliable performance for all major ECG machines. Speaking of the roller type, the specifications of 50x20m, 80x20m, 110x30m, 210x20m are widely used. The specifications of 110x140mm, 210x140mm, 210x295mm are the market-dominant size for fan-fold type.
| Item | Specification | Machine Mode |
| Single Channel ECG Paper | 50mm*20m | NIHON KODEN-6511/6851, UT 4000 |
| Three Channel ECG Paper | 50mm*30m | FD 2111-U,HPM1723A/B, KODEN 6951C |
| Three Channel ECG Paper | 60mm*30m | KODEN 8110K/P |
| Three Channel ECG Paper | 63mm*30m | KODEN 8011K/9620P, FD FX-2155/7101/7102 |
| Three Channel ECG Paper | 80mm*20m | EDAN SE-3, BLT-1203, CM300 |
| Three Channel ECG Paper | 80mm*70mm-200SHT | SCHILLER ECG Paper |
| Three Channel ECG Paper | 112mm*20m | KENZ 302, RXJ083 |
| Three Channel ECG Paper | 112mm*90mm-200SHT | KENZ 302, RXJ083 |
| Three Channel ECG Paper | 144mm*30m | FX-3010/3101,FX-7302 |
| Three Channel ECG Paper | 145mm*30m | NIHON KODEN 6353 EGG 32A |
| Six Channel ECG Paper | 144mm*30m | FX-3010/3101 FX-7302 |
| Six Channel ECG Paper | 110mm*140mm-20m | FX-7202/KM Six channel |
| Six Channel ECG Paper | 110mm*140mm-200SHT | NIHON KODEN 9020P/9010P/EDAN |
| Three Channel ECG Paper | 110mm*140mm-20m | NIHON KODEN ECG 9020P/1250P/9010 |
| Six Channel ECG Paper | 110mm*140mm-20m | GE MAC 8009 |
| Six Channel ECG Paper | 110mm*20m | Beijing MB1206 |
| Twelve Channel ECG Paper | 210mm*30m | KENZ-4010U/4101,FX-4010/7411 |
| Twelve Channel ECG Paper | 215mm*30m | ECG-9012A |
| Twelve Channel ECG Paper | 216mm*20m | KODEN 8340,UCH 3000 |
| Twelve Channel ECG Paper | 144mm*125mm-200SHT | BLT-2012 |
| Twelve Channel ECG Paper | 145mm*100mm-200SHT | NEC-3321 NEC-3330/3370 |
| Twelve Channel ECG Paper | 210mm*140mm-20m | NIHON KODEN 8420K/8450K |
| Twelve Channel ECG Paper | 210mm*140mm-200SHT | KODEN 9130K/9130P/9110P/EDAN 1210 |
| Twelve Channel ECG Paper | 210mm*150mm-200SHT | AT-10 |
| Twelve Channel ECG Paper | 210mm*150mm-150SHT | KODEN 9130K 9522C IOCARE IE12A |
| Twelve Channel ECG Paper | 210mm*150mm-150SHT | KENZ 1210 1211 |
| Twelve Channel ECG Paper | 210mm*295mm-200SHT | NIHON KODEN 9320K 9522C |
| Twelve Channel ECG Paper | 215mm*280mm-200SHT | CASE8000(58G/72G) |
| Twelve Channel ECG Paper | 215mm*280mm-200SHT | GE MAC-1600 |
| Twelve Channel ECG Paper | 215mm*280mm-200SHT | MARTARA ELI-250 HPM 1772/2242B/1770A |
| Twelve Channel ECG Paper | 210mm*300mm-200SHT | 1770A(58g/72g) |
| Twelve Channel ECG Paper | 210mm*300mm-200SHT | SIEMENS 46,57,867E,100E |
| Twelve Channel ECG Paper | 210mm*280mm-200SHT | SCHILLER AT-2 |
| Twelve Channel ECG Paper | 216mm*140mm-200SHT | BLT-2012 |
| Twelve Channel ECG Paper | 210mm*300mm-200SHT | HP 1772A/1770A |
| Twelve Channel ECG Paper | 144mm*125mm-200SHT | NEC-3321 |
| Twelve Channel ECG Paper | 50mm*100mm-300SHT | BSM-720K/3101K,KODEN 7621C |
| Twelve Channel ECG Paper | 50mm*100mm-300SHT | ECG-7100K/7200K |
